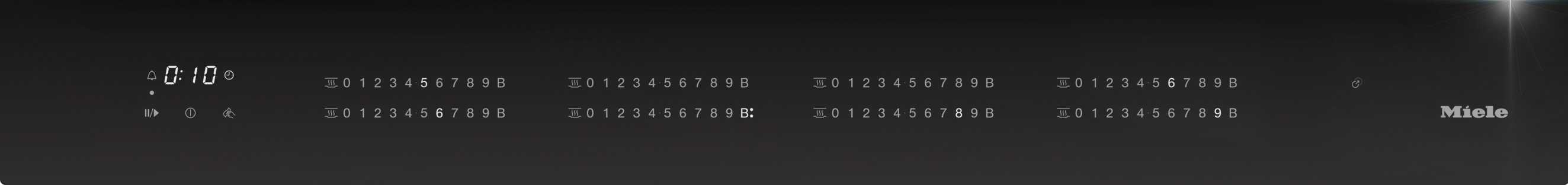

  • Miele - KM 7897-2 FL Diamond – Hobs - 1
  • Miele - KM 7897-2 FL Diamond – Hobs - 2
  • Miele - KM 7897-2 FL Diamond – Hobs - 3
Induction hob with onset controlsDiamond

KM 7897-2 FL Diamond

with full-surface induction and DiamondFinish for long-lasting cooking pleasure
sale priceMYR30,800.00


Product details

  • Hard-wearing finish –
    DiamondFinish
  • Intelligent pan recognition – for up to 6 pans
  • Intuitive quick selection via numerical displays –
    SmartSelect White
  • Communication with the cooker hood – automatic
    Con@ctivity
    function
  • Frameless for flush-fit or surface-mounted installation
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
KM 7897-2 FL Diamond
Manufacturer material number
12273810
EAN number
4002516675136
Marketing class
Diamond
Heating type
Induction
Independent of cooker
Scratch-resistant surface
DiamondFinish
Elegant glass ceramic surface
Ceramic surface colour
Graphite black
Flush
Surface-mounted installation
Number of cooking areas
1
Maximum number of pans
6
Position
Can be selected freely
Type
Full area
Size in mm
870x380
Max. rating in W
2600
Max. Booster power rating in W
3300
Max. TwinBooster power rating in W
3650
Networking with Miele@home
Con@ctivity

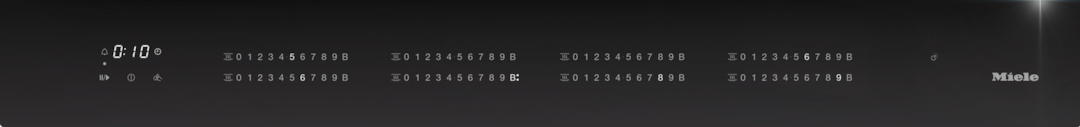

Operation via sensor controls
SmartSelect White
Display colour
White
Intelligent pan recognition
Pan and pan size recognition
Positioning aid
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Push notifications
Smart Home Integration
Power rating in off mode in W
0.5
Power rating in standby mode in W
0.8
Power rating in networked standby in W
2
Time until automatic switch to off mode in min
10
Time until automatic switch to standby in min
10
Time until automatic switch to networked standby in min
10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm
51 x 936 x 520
Dimensions in mm (width)
936
Dimensions in mm (height)
51
Dimensions in mm (depth)
520
Cut-out dimensions (W x D) with surface-mounted installation in mm
916 mm x 500 mm
Cut-out dimensions (W x D) with flush-fit installation in mm
916/940 x 500/524
Casing height incl. connection box in mm
57
Cutout dimensions in mm (width) with surface-mounted installation
916 mm
Cutout dimensions in mm (depth) with surface-mounted installation
500 mm
Internal cutout dimensions in mm (width) with flush installation
916
Internal cutout dimensions in mm (depth) with flush installation
500
External cutout dimensions in mm (width) with flush installation
940
External cutout dimensions in mm (depth) with flush installation
524
Weight in kg
21
Total rated load in kW
9.200
Voltage in V
230
Frequency in Hz
50 - 60
Length of supply lead in m
1.4
Mains cable
EAN
4002516675136

What's included

Mains cable
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Cleverly networked
    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • Smart control
    Smart control

    Con@ctivity

    Innovative convenience: the cooker hood reacts automatically to settings on the hob.

  • Flexibility in every cooking situation
    Flexibility in every cooking situation

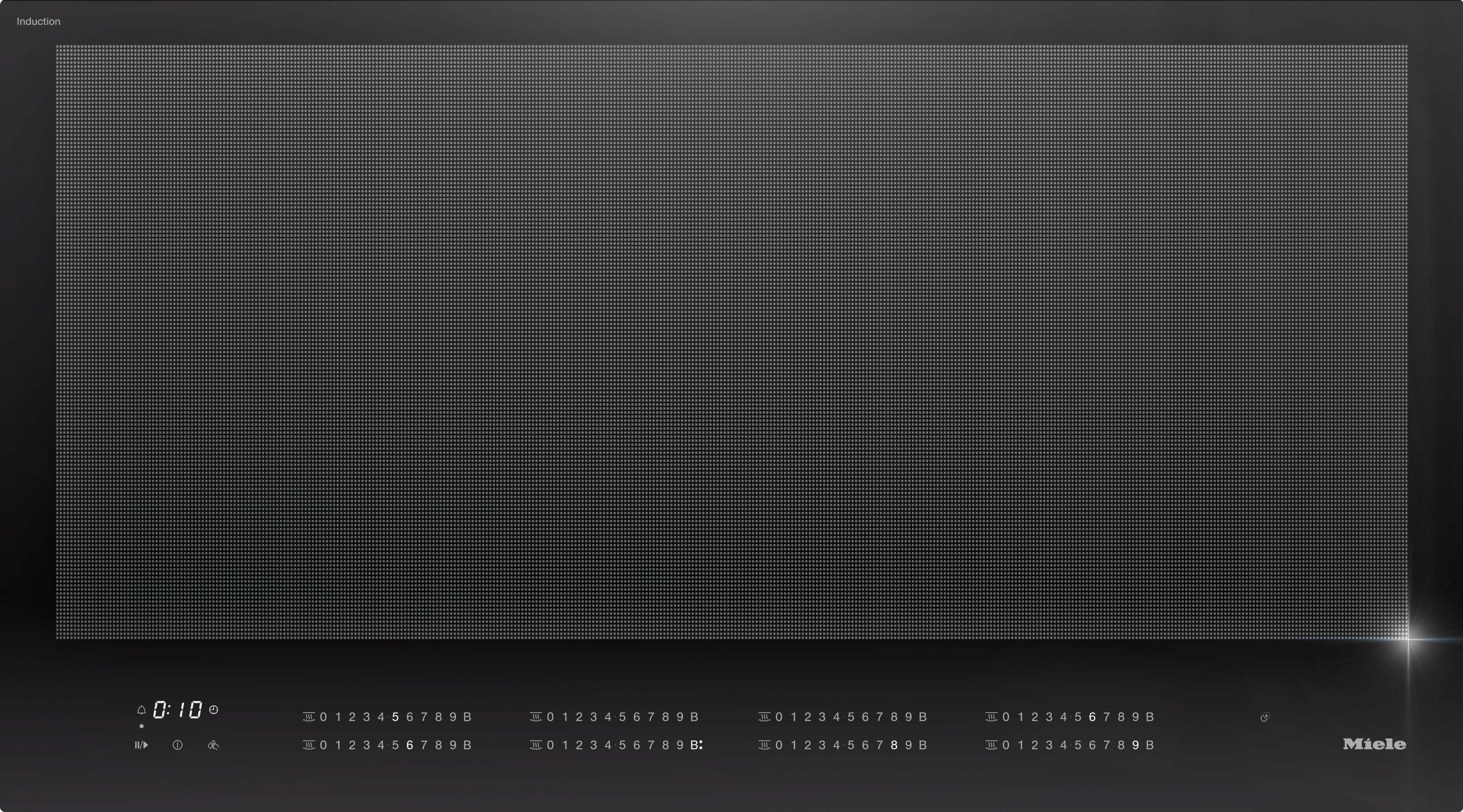

    Full-surface

    Use the hob surface however you like: pans can be placed anywhere.

  • Simple operation thanks to intuitive controls
    Simple operation thanks to intuitive controls

    SmartSelect White

    Select the setting quickly and easily for each individual cooking zone and experience intuitive cooking.

  • Hard-wearing finish
    Hard-wearing finish

    DiamondFinish

    Robust and sophisticated: the particularly resistant and high-quality DiamondFinish coating reduces scratches.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

Setup/function

Smart control
Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Flexibility in every cooking situation
Flexibility in every cooking situation

Full-surface

Use the hob surface however you like: pans can be placed anywhere.
Intuitive and intelligent
Intuitive and intelligent

Intelligent pan detection

Knows where the pan is: the control elements simply move along on the full surface.
Heats up particularly quickly thanks to Booster
Heats up particularly quickly thanks to Booster

TwinBooster

Distribute the induction power across several cooking zones or concentrate the power on one cooking zone.
Added convenience
Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
Hard-wearing finish
Hard-wearing finish

DiamondFinish

Robust and sophisticated: the particularly resistant and high-quality DiamondFinish coating reduces scratches.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Simple operation thanks to intuitive controls
Simple operation thanks to intuitive controls

SmartSelect White

Select the setting quickly and easily for each individual cooking zone and experience intuitive cooking.

Smart Extras

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications1,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Operating instructions/Installation instructions
PDF
Download
Product Fact Sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/a5bee9a5-37df-456e-a9fb-b3bd00e7b10b/20000151107_HighresDigitalRGB.png
Descriptions

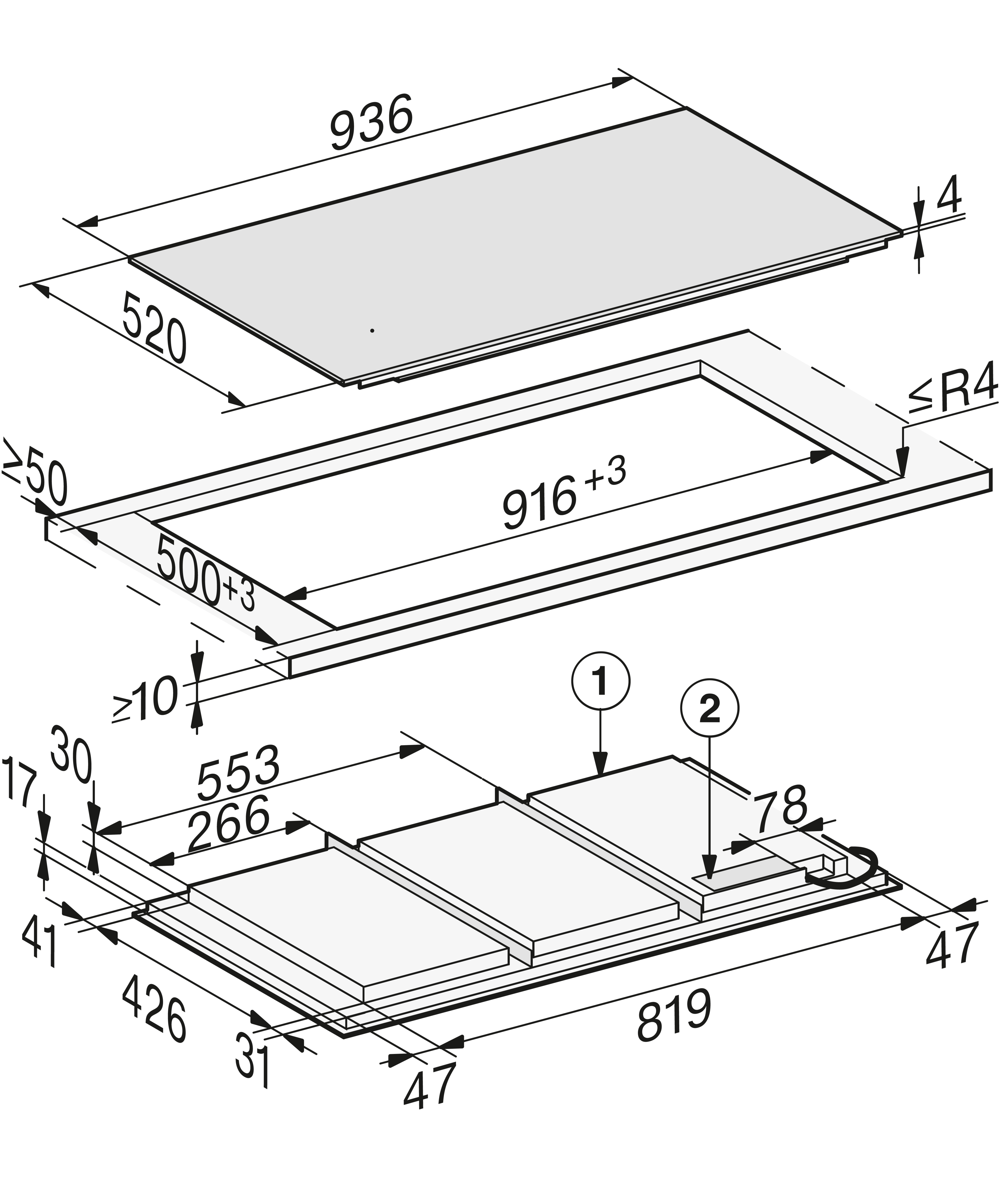

KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - onset
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely,
POSTSCRIPT
Download
https://media.miele.com/dam/f9965e15-9bb5-46b7-a4b2-b3bd00e787a8/20000151125_HighresDigitalRGB.png
Descriptions

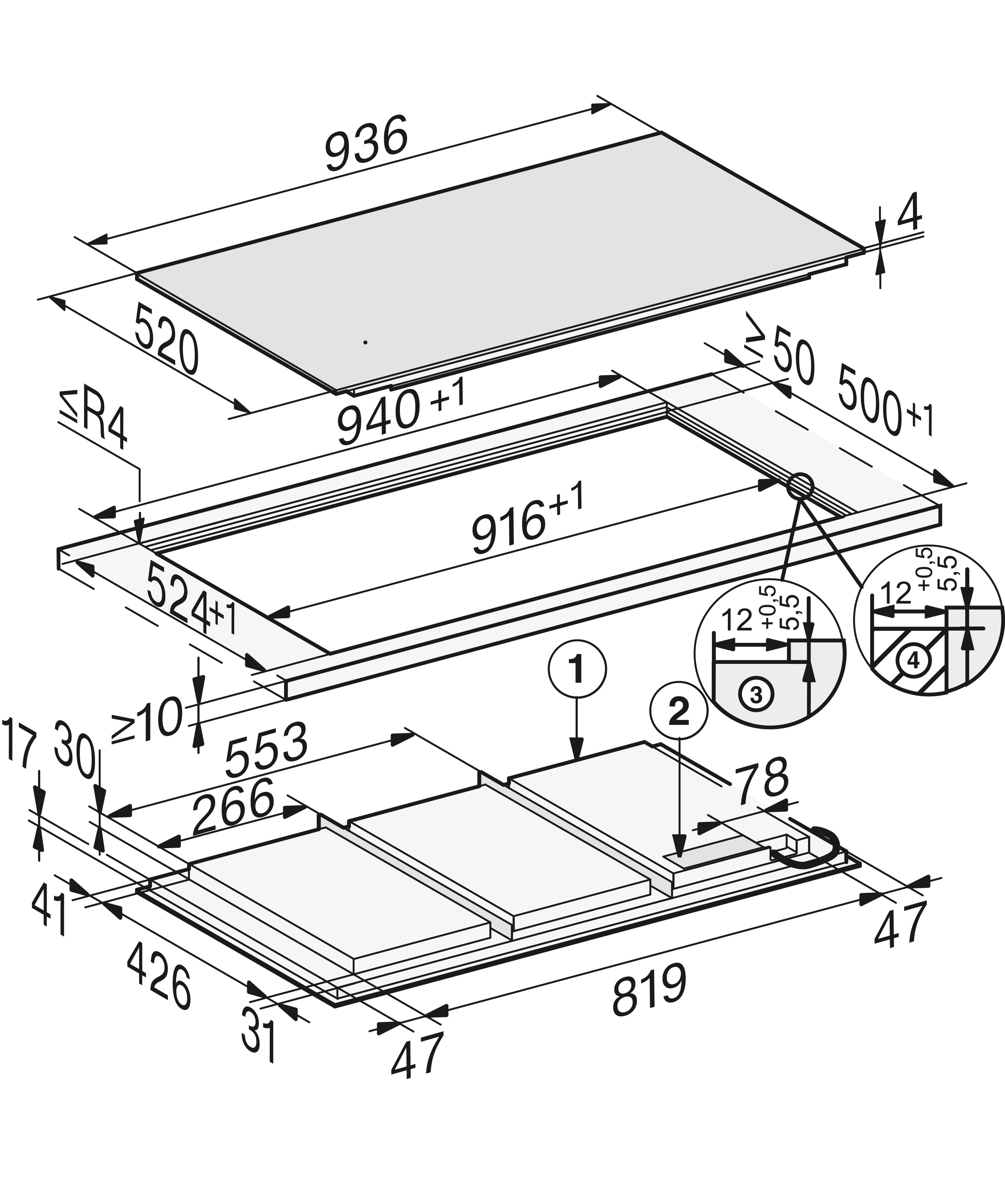

KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - flush-fit
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied)
POSTSCRIPT
Download
